24Vdc to 220Vac 1-3KVA Rack Mount Inverter Power Supply

HOT PRODUCTS > Telecom Power Inverter > 24Vdc to 220Vac 1-3KVA Rack Mount Inverter Power Supply

24Vdc to 220Vac 1-3KVA Rack Mount Inverter Power Supply

DC Input Range: 22 to -28 vdc;
Bypass Input:170-270VAC;
AC output: 220VAC(±5%) Can be Adjustable On the LCD Display;
Output Voltage Precision(V):220Vac ±1.5%
≥85% (Bypass Mode)
Communication Interface:Rs232& Rs485 and Digital Input, SNMP optional
shared:
24/220-1KVA 24/220-2KVA 24/220-3KVA

   Product Description

This type Rack mount Inverter with a new generation of dual input inverter solution designed for the field of communication applications, which is suitable for the high reliability of the communication system. The solution is equipped with 220V AC power supply and 24V DC power Input , which fills the gap between the traditional UPS power supply and common pure sine wave inverter solutions.

It uses a novel design structure that helps users to provide Pure, stable and durable AC power for critical loads, and has the same high reliability as the AC power supply system. The design characteristics of the dedicated communication pure sine wave inverter ensure the seamless conversion between the AC and DC power supply, almost no conversion delay, and build in the static switch.







   Basic System Architecture

The following illustration shows the basic application for this inverter. It also includes the following devices to
have a complete running system:

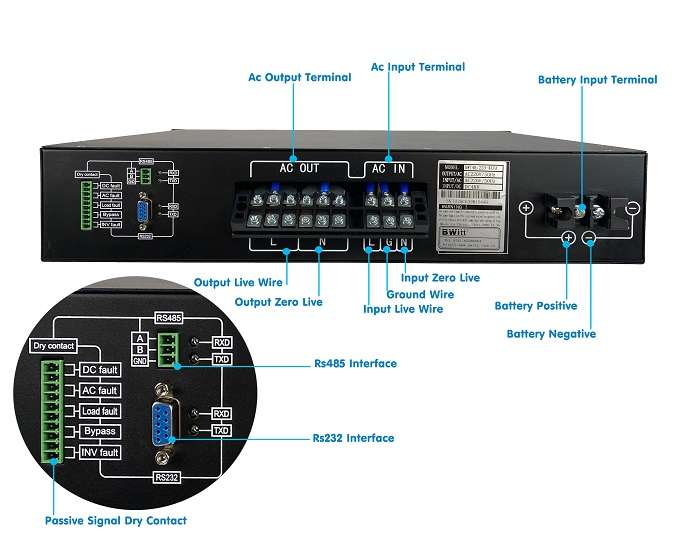

Product Overview

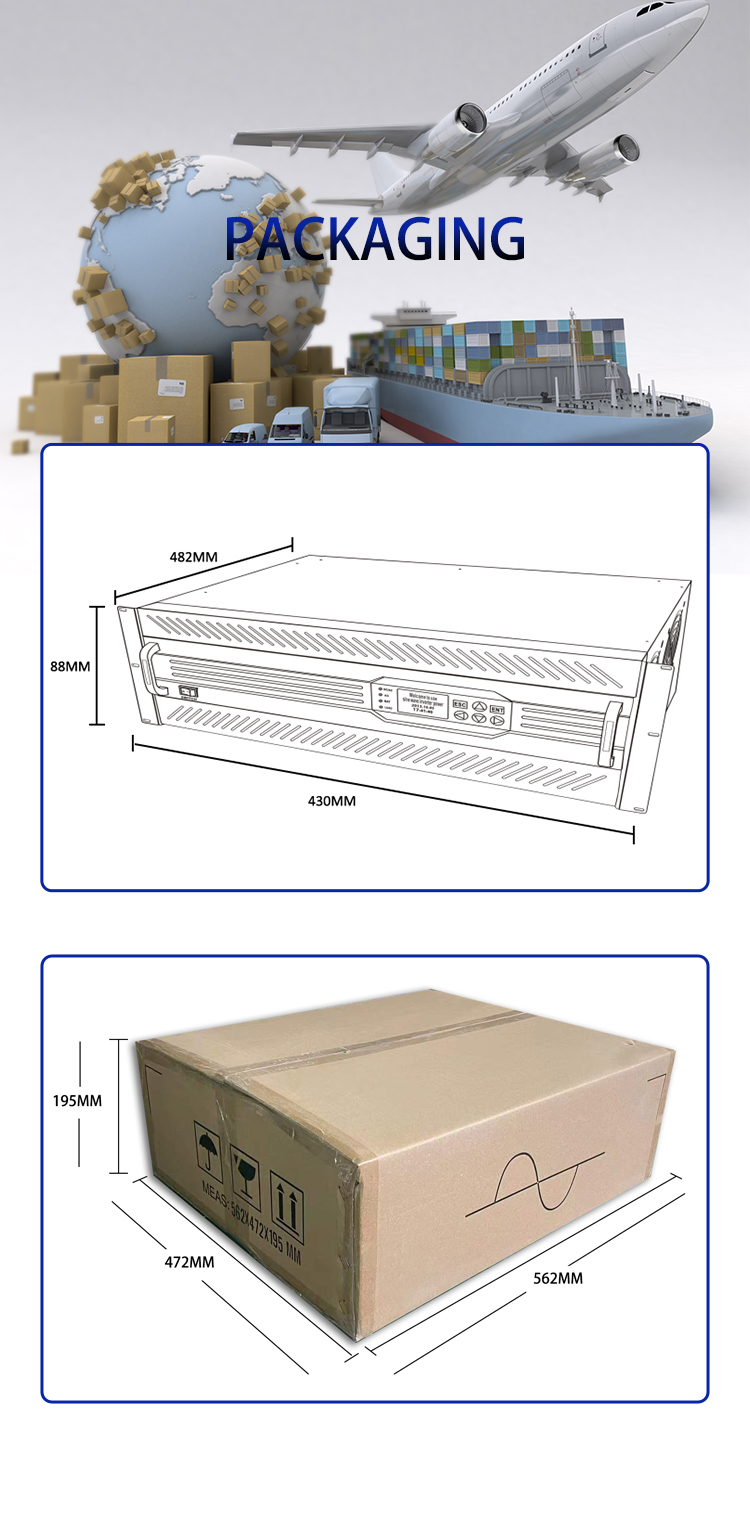

   Product packaging
