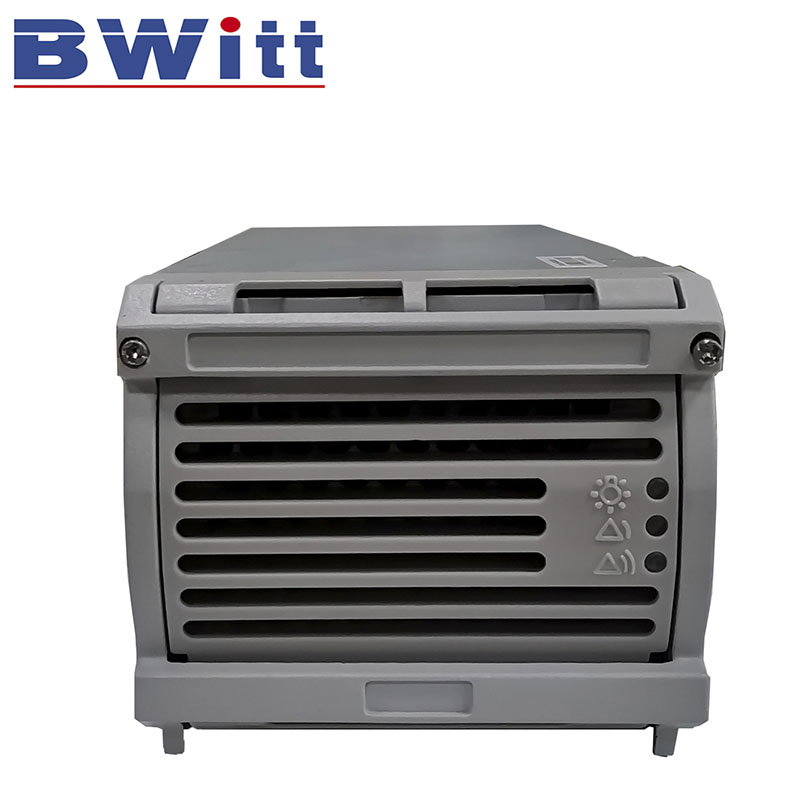

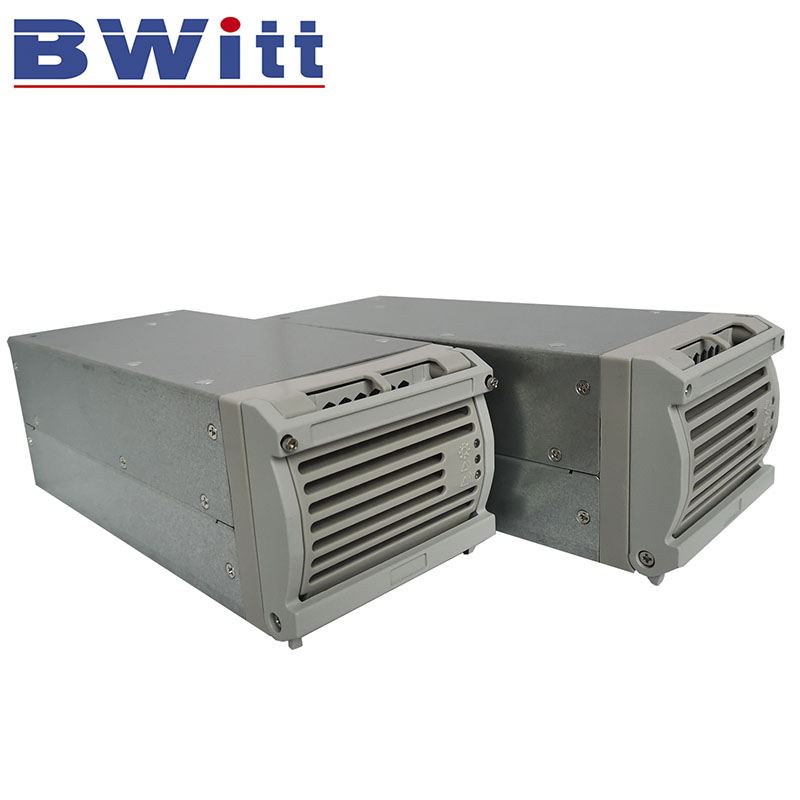

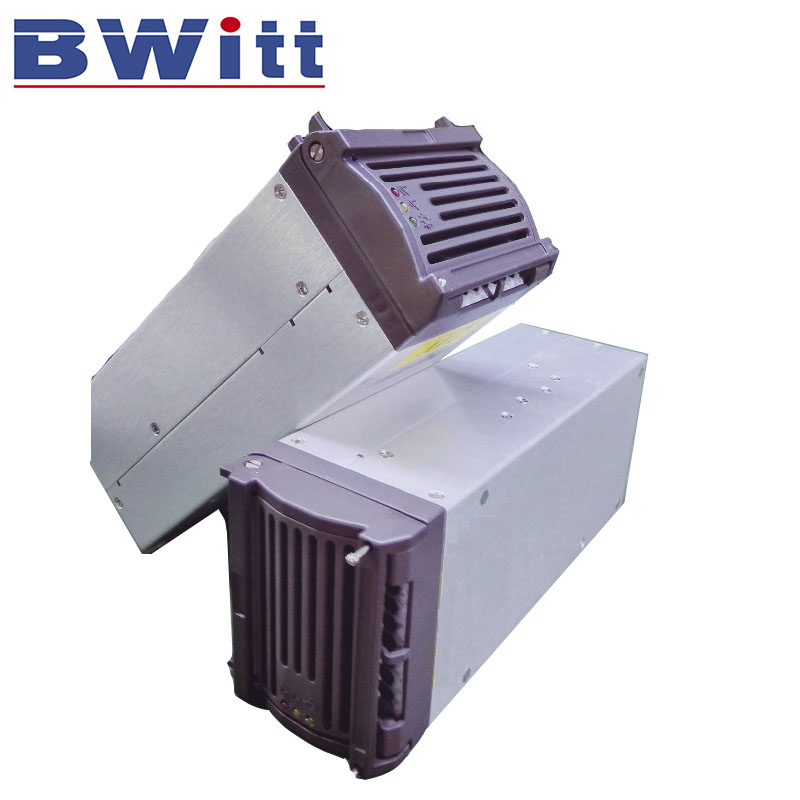

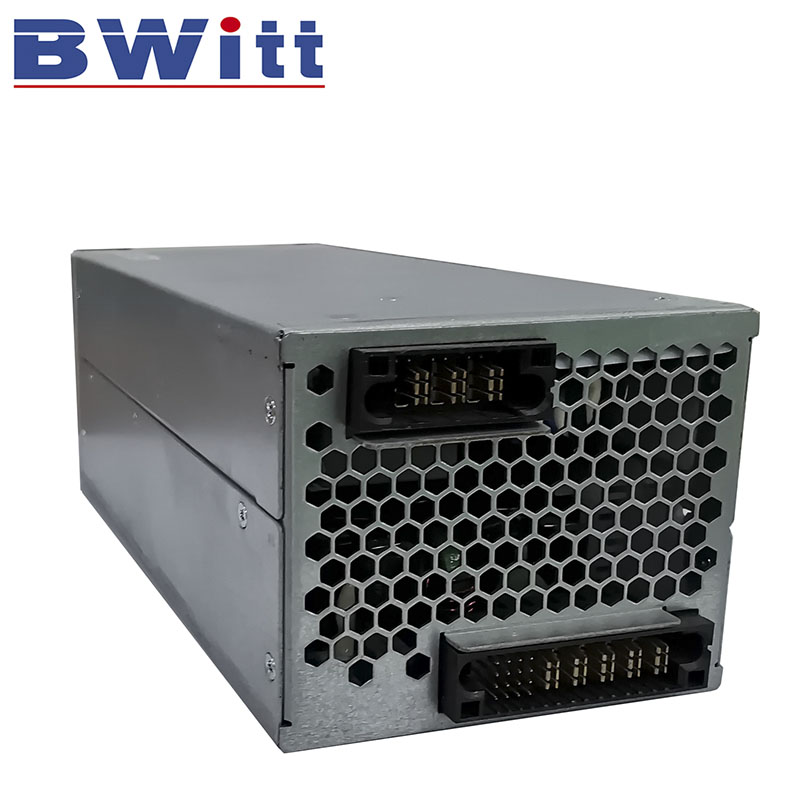

24Vdc/48Vdc Rectifier Module

Single Input
Input Voltage Range: 90Vac to 290Vac/ 90Vdc to 400Vdc
Rate Input Range: 110Vac/220Vac
Efficiency: ≥93%@220Vac 100% Load

Share

BR241800 BR483000

The rectifier module output current regulation and communication interruption are as follows:
The output current of the rectifier module can be adjusted according to the current command. The adjustment range of BR483000 is 1A~50A, the adjustment range of BR241800 is 1A~60A.
Communication fault more than 1 minute (Rectifier and Control monitor),A .Rectifier
module output Voltage automatic recovery default Voltage (BR483000 is 53.5V, BR241800 is 24V) and limited current
function not working;b.if the rectifier modules are controller by monitor and Power off, then
rectifier system will power on(if the rectifier fault, it can not be turned on again)
