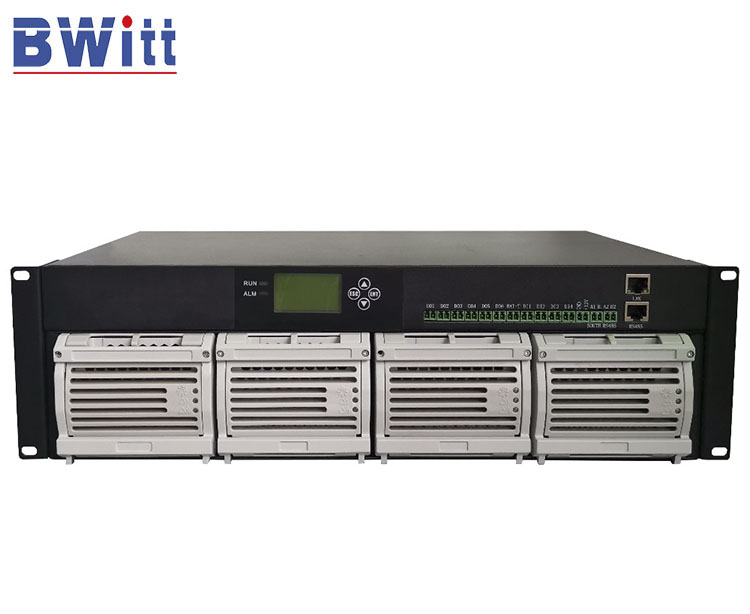

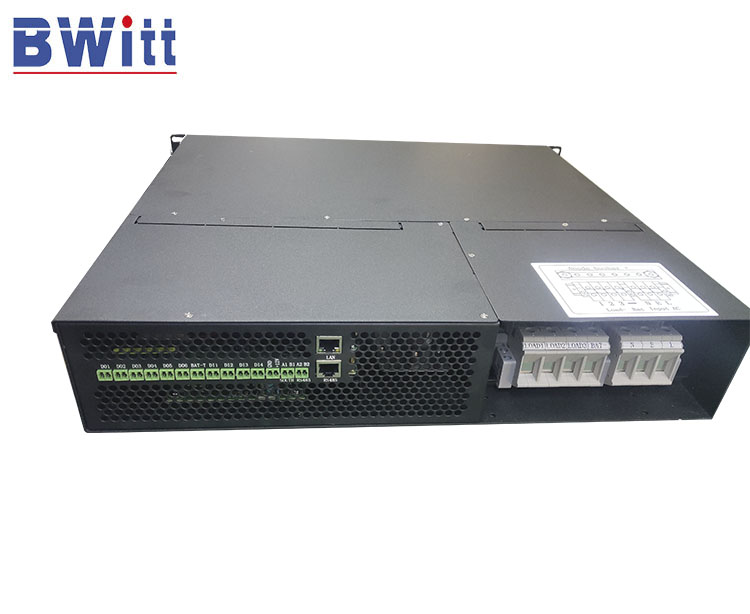

24Vdc 20-600 Amperes Rectifier system
24Vdc 20-600 Amperes Rectifier system
AC input voltage range: 90~290Vac
Efficiency>93%
Perfect battery management, battery temperature
Multiple communication ports, easy for networking and remote management，ModbusRS485，TCP/IP， YDN23 (YD/T 1363) protocol
Temperature compensation, LVLD and LVBD protection
Automatic battery test function, cycle test, quick test
Efficiency>93%
Perfect battery management, battery temperature
Multiple communication ports, easy for networking and remote management，ModbusRS485，TCP/IP， YDN23 (YD/T 1363) protocol
Temperature compensation, LVLD and LVBD protection
Automatic battery test function, cycle test, quick test
shared：
BR241800... Rectifier module (I/P 220Vac,O/P:110Vdc);
M30.1.2V*1...…Monitor module (I/P 220Vdc ,2U Size);
SRM-19**1 …….................19" Inch 2U size chassis;
Classification …………………………………………IP20;
Safety…………………… GB4943-2001& IEC 60950-1;
EMI ……………………………………… EN 55032:2015; ………………………………………EN 55035:2017; …………………………………EN61000-3-2:2014; …………………………………EN61000-3-3:2013; ………………………………… EN55022, CLASS A; ………………………………… EN300386,CLASS ;
ESD……………………GB17626.2-1998/IEC61000-4-2;
EFT……………………GB17626.4-1998/IEC61000-4-4;
SURGE………………GB17626.5-1998/IEC61000-4-5;
DIP…………………GB17626.11-1998/IEC61000-4-11;
Conducted Immunity………………… IEC61000-4-6;
Radiated Immunity ……………………IEC61000-4-3;
Environment ………………ETSI EN 300 019-2 RoHS;
